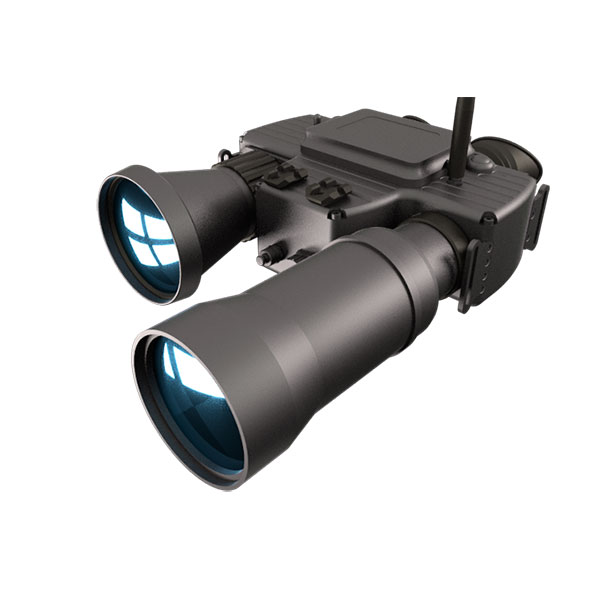

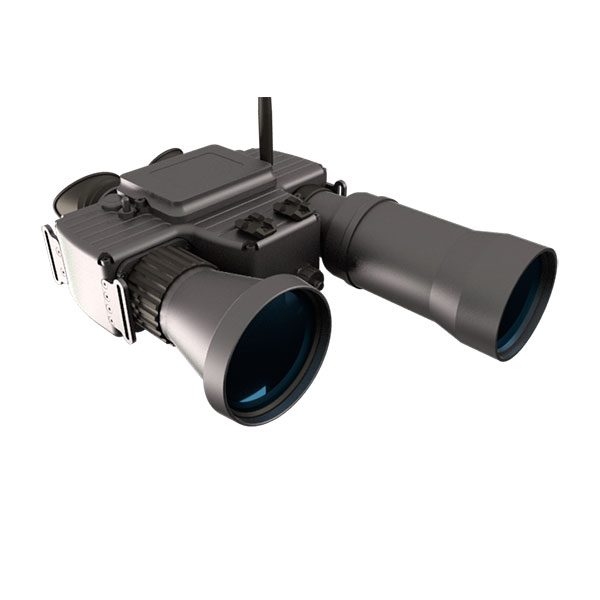

Thermal-TV hybrid binocular PANDION

Article:

Market types:

Civil

About Product

The PANDION is a high-tech dual-spectral round-the-clock binocular, designed for 24-hours search, supervision and registration of objects in normal and harsh weather conditions as well as in man-made noise within a wide spectral range — visual and infrared (thermal). The application of up-to-date technologies with athermalized microbolometer as well as high-sensitive CCD camera with digital processing delivers high quality and sensitivity for TV images. The built-in CCD camera allows observation not only at night and dusk in automatic mode, but also during rain, snowfall and fog conditions. The device has a binocular design, the built-in digital video recorder, SD/microSD card memory slot (supports up to 32 Gb) and Wi-Fi video transmitter with work range up to 150 m, compatible to Android and iOS Apple devices.

  • Wi-Fi
  • Digital video recorder with SD/microSD card
  • Thermal and TV channels
  • SPECIFICATIONS

      Thermal channel TV channel

    Detector

    VOX, 8…14 µм, 50 Hz Colored CCD ½”, day/night 50 Hz
    Resolution 384×288 (640×480) 768×582

    Sensitivity

    <50 mk 0.0001 Lx
    Magnification 6X 0.5–10X

    Display

    Colored 2.5” LTPS TFT LCD 960×240 pixels
    FOV (horizontal) 2–16°

    Max. range of man’s detection

    2000 m 1000 m (Е=0.005 lux)
    Battery Li-ion batteries 3×18650

    Work time

    6 hrs.

    Protection class

    IP65

    Dimensions

    240×210×80 mm

    Weight (w/o battery)

    2.2 kg
